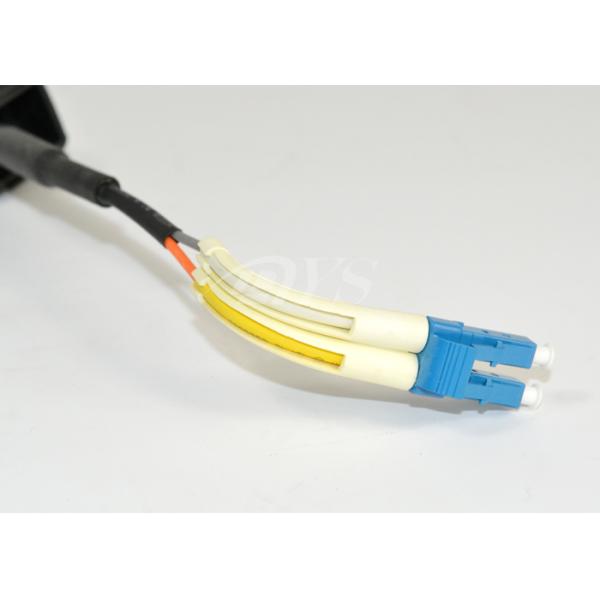

Outdoor NSN Jumper with bent boot G657A1Optical Fiber Patch Cord Duplex fiber LC Connector
Quick Details:
- Place of Origin: Guangdong, China (Mainland)
- Brand Name: DYS/OEM
- Model Number:NSN
- Fiber type: Singlemode9/125
- Inserion Loss: <0.2db
- Return Loss: >55db
- Certifaction: ISO9001, ROHS
Feature:
1>FTTA , WiMax base station,CATV outdoor Application;
2>Optional Diameter:4.8mm,7.0mm or Customized;
3>Optional Jacket:LSZH,PE,PU.,Armoured or Non Armoured;
4>IP67 Waterproof protection;
Application:
Fiber-to-the-Antenna (FTTA)
Latest and next-generation mobile communication systems(GSM, UMTS, CMDA2000, TD-SCDMA, WiMAX, LTE,etc.) deploy fiber-optic feeders to link the base station with the remote unit at the antenna mast.
Automation and industrial cabling
ODC provides highest reliability and operating safety. The ruggedized design provides highest mechanical and thermal robustness which keeps the data lines alive even in case of
shock, strongest vibration, or accidental misuse.
Surveillance systems
Security camera manufacturers choose ODC connectors for its compact size and robust design. ODC assemblies are easy to install even in areas difficult to access and provide highest installation safety.
Naval and ship building
The high corrosion resistance convinced both naval and civil ship builders to use ODC assemblies for on-board communication systems. The nickel plated connectors withstand humid and salty environments and guarantee life times of 20 years and beyond.
Broadcast
offers a range of mobile cabling systems and ODC assemblies for temporary cable installations
required for the broadcasting of sport events, car racing, etc.and for temporary connections in case of natural hazards.
Drawing:
NSN Boot(for 7.0mm Cable) NSN Boot(For 4.8mm boot)
Specification:
| Item | Data |
| fiber | OS2,OM1,OM2,OM3,OM4 |
| Tension member | Aramid Kevlar,Armoured Tube |
| Max. attenuation | SM:≤0.34dB/km at 1310nm,≤0.20dB/km at 1550nm MM:≤0.60dB/km at 1300nm,≤2.3dB/km at 850nm |
| Tensile resistance(short term) | 500N(no breakage) |
| Crush resistance(short term/long term) | 1000N/100mm |
| inflaming retarding | IEC 60332-3 |
| Temperature | -40~+70°C |
| Uvioresistant | PASS |
| Authentication | Meet with RoHS &UL |
Competitive Advantage
DYS strictly enforce the ISO9001 quality management system, companies with good facilities and qualified human resources management to ensure product quality stability and excellent performance; and good after-sales service, to win the trust of customers, products exported to Europe and the United States and Southeast Asian countries.
